Mytee Products (2 Pack) Container Lifting Lug for Top Camlock – 14 Ton Capacity – Mounted at The Corners

Description

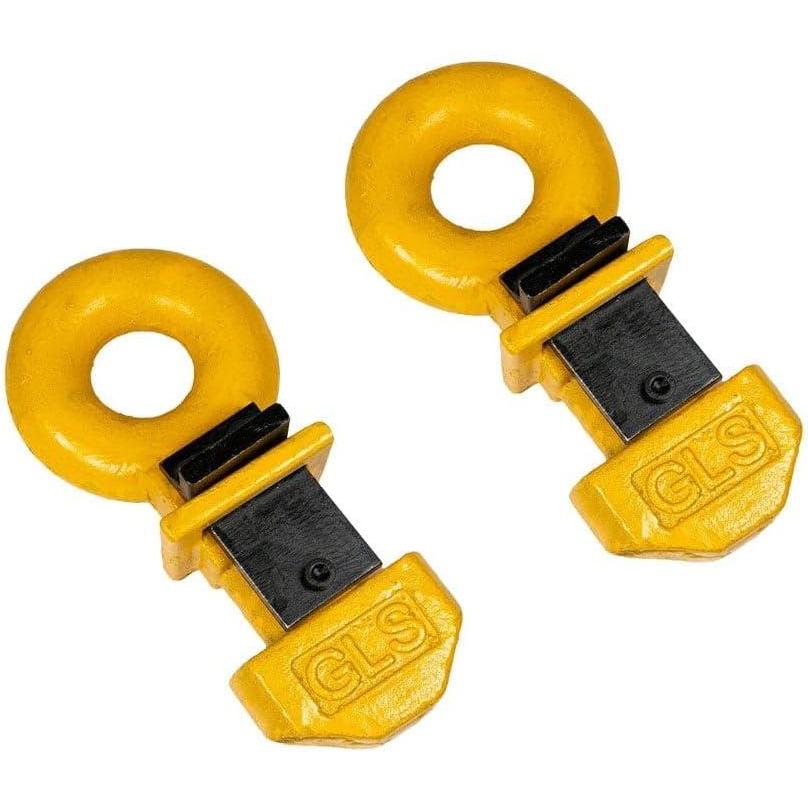

Pack Size: 2 Pack

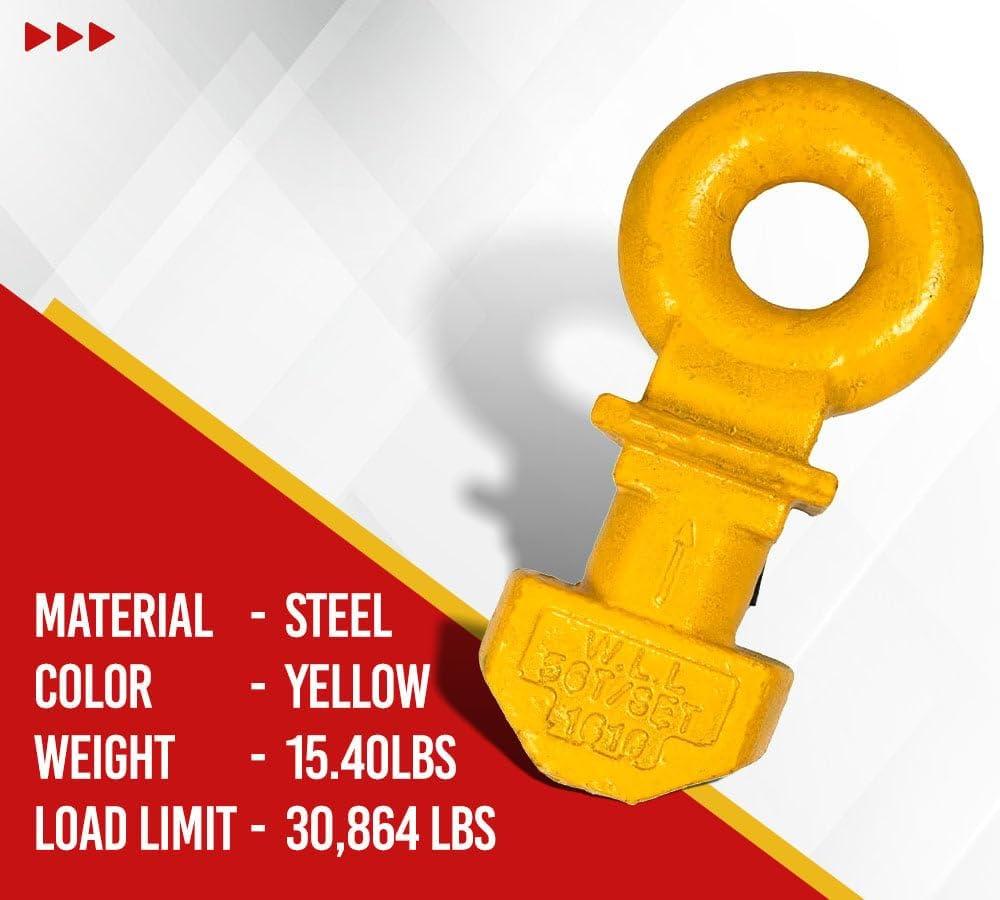

• Weight: 15.4 lbs
• Color: Yellow
• Material: Steel

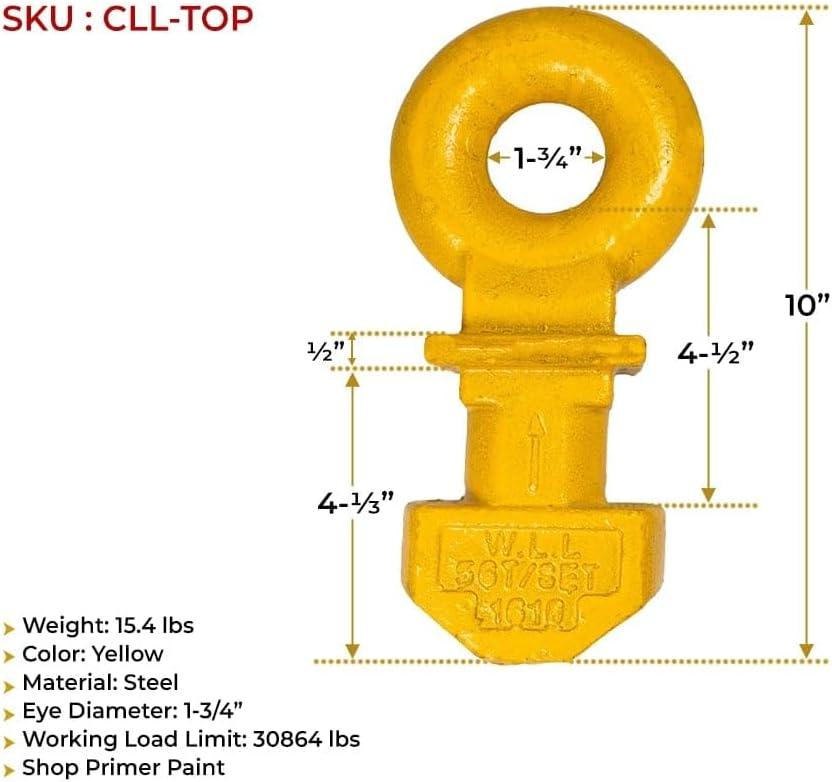

• Eye Diameter: 1-3/4”

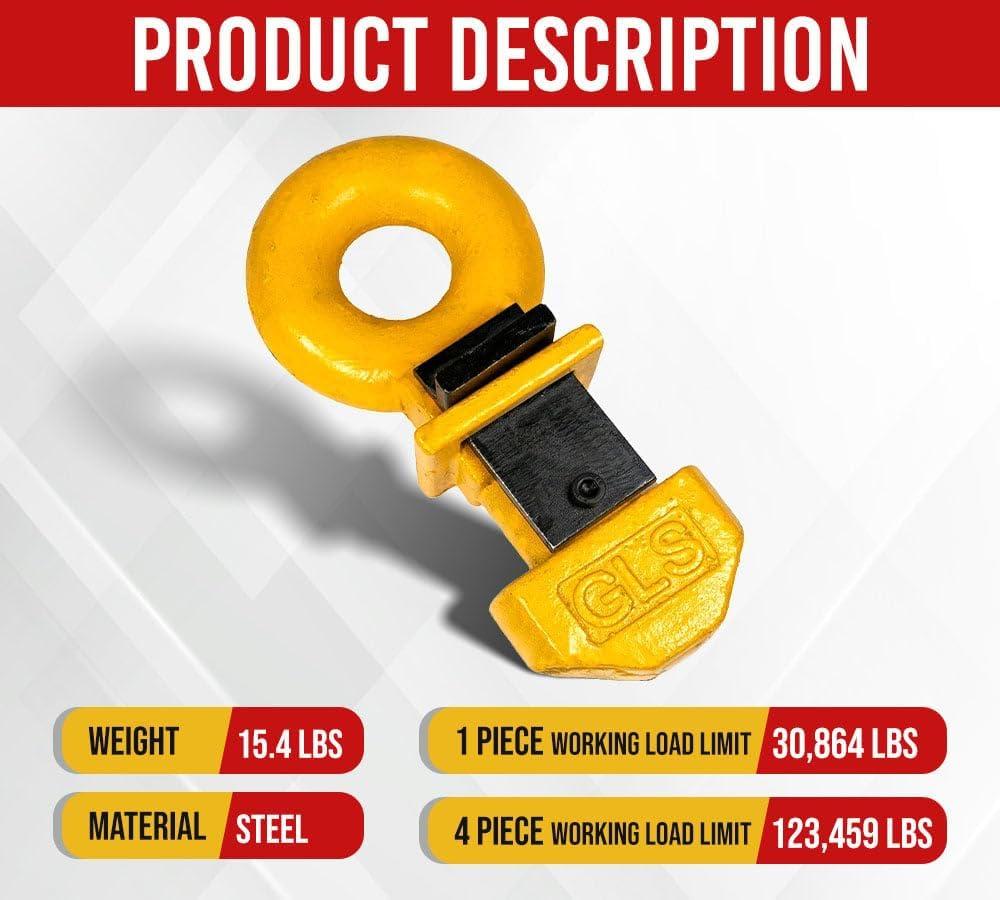

• Working Load Limit: 30864 lbs
• Shop Primer Paint
• Easy Installation and removal, simply insert and turn.
• Equipped with a locking pin to prevent slipping

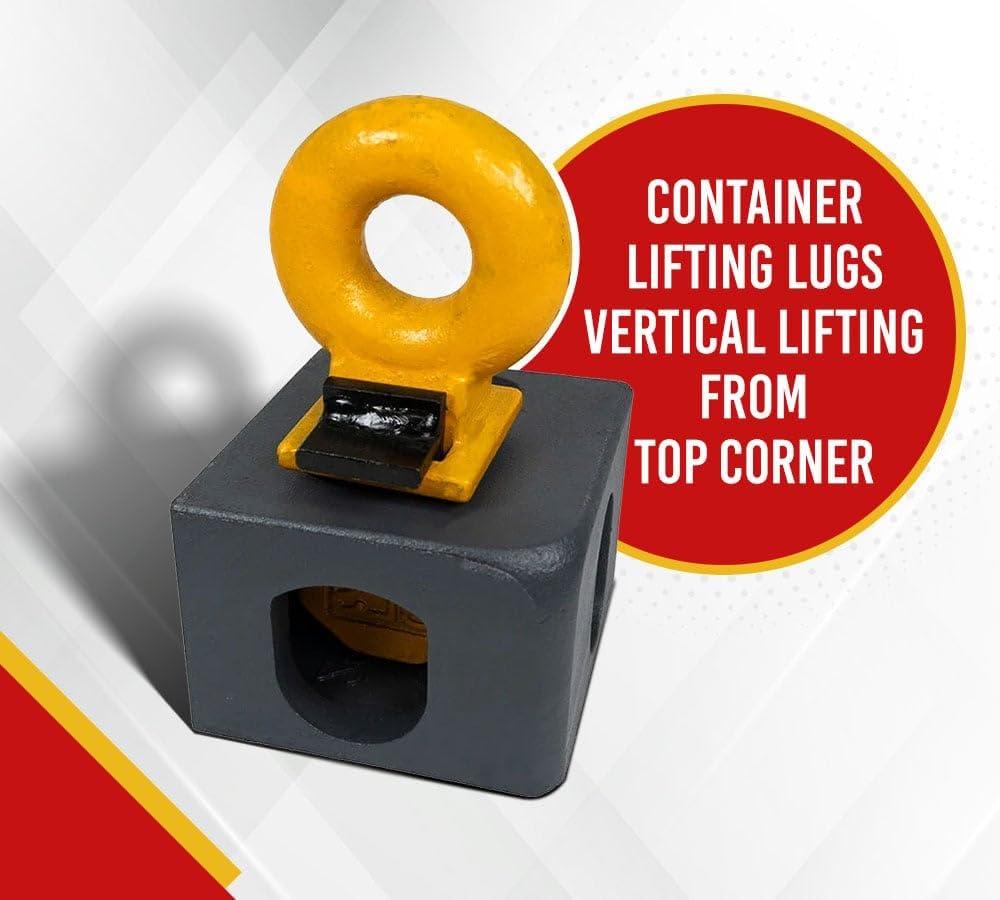

• Easy to place at the top of the Corner Castings

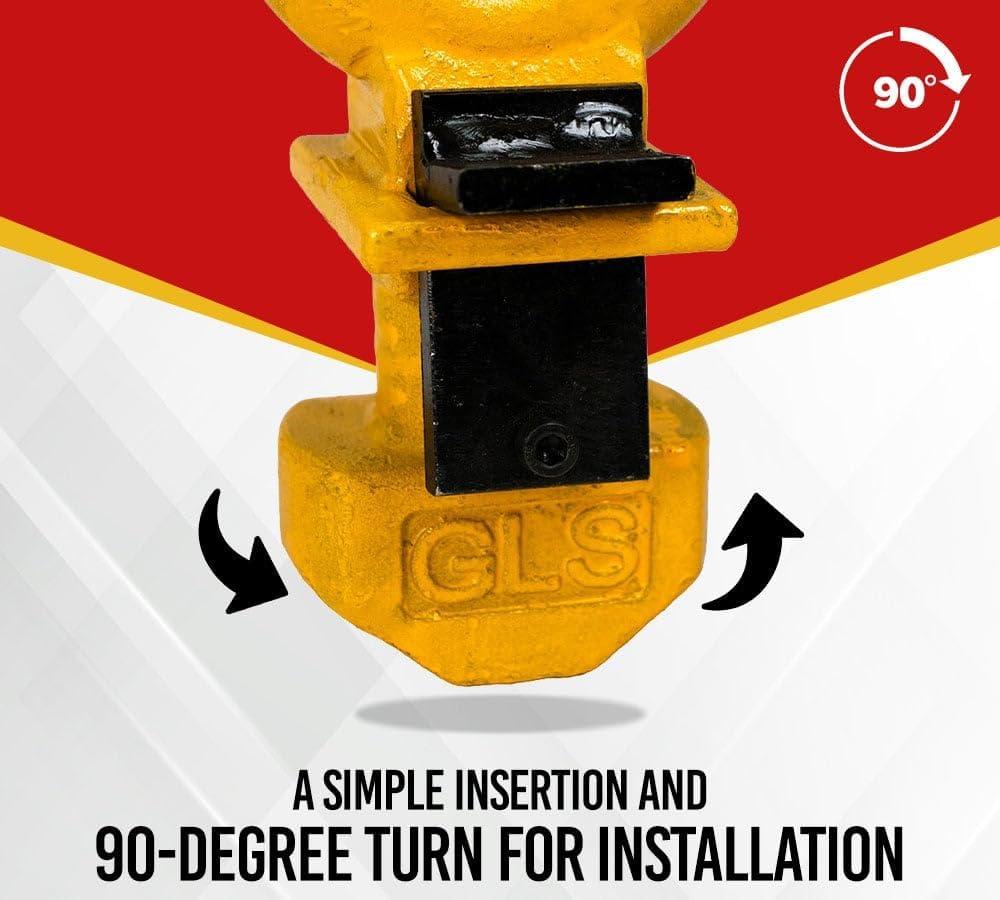

• Container Lifting Lug For Top Camlock, designed to be installed vertically in the upper four corners of a shipping container, offers a simple insertion and 90-degree turn for installation.
• These lugs are purposely created to replace the hazardous usage of standard hooks, thereby reducing accident frequency.
• With lifting lugs positioned atop containers, there are no hooks or components sticking out from the container's sides, enabling containers to be situated closely together.
• Containers can be effortlessly placed or elevated in confined areas. Once situated, the removal of the container hooks from the top is a straightforward process.
• The lifting lugs come with a locking pin, designed to prevent any unintentional slipping during use..
• A suitable shackle should be used to link the lug to the lashing equipment, such as chains or slings, to ensure a secure and reliable connection.

How to use a Container Lifting Lug?

• Insert each lifting lug from above into the four openings of the Top Camlock of the shipping container, press the safety angle upward, and then rotate the lifting lug 90° in any direction.
• Ensure the correct positioning of the load-lifting attachment by fully pressing down the safety pin until it reaches the container's opening to prevent the lug from turning and unlatching.
• Conduct your transport operation.
• Once transport is complete, remove the lifting lugs by lifting the safety pin on the load lifting attachment to unlatch the lug, rotate it 90° in any direction, and then pull it out of the corner opening of the container.
